내압/분진방폭형 LED 등기구 (20W)
Ex db IIC T6 Gb IP66 (Zone 1/2)
Ex tb IIIC T85℃ Db IP66 (Zone 21/22)
Ambient Temp. : -20 ~ +50℃
Life Time : + 50,000hr
Ordering Information

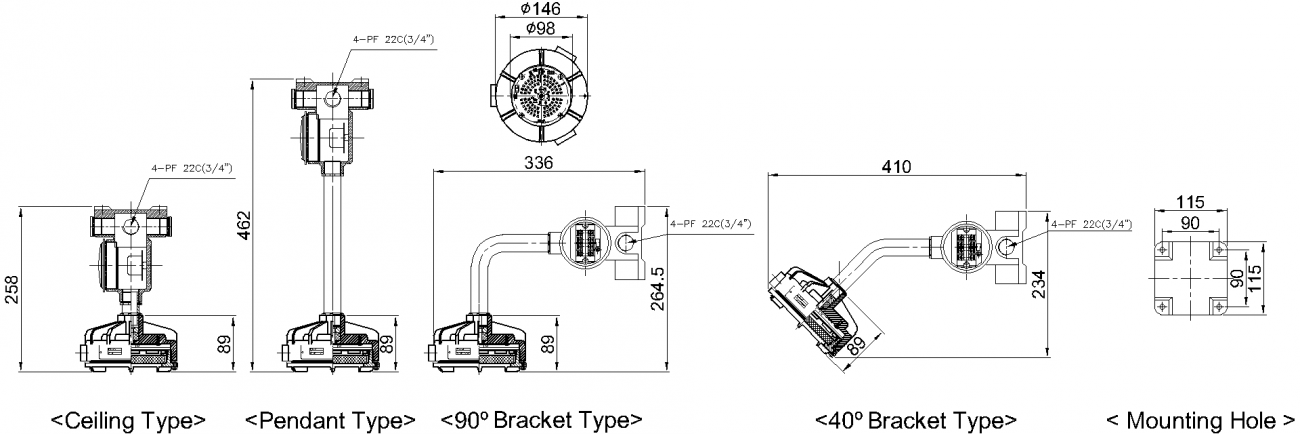

Drawing
Material (Standard)
| Mount Box | Die-Cast Aluminium Alloy |
| Main Body | Cast Aluminium Alloy |
| Cover | Cast Aluminium Alloy |
| Lens | Tempered Glass |
| Lens Lock Nut | Cast Aluminium Alloy |
| Pipe | Steel |
| Painting Color | Munsell No. 7.5BG 6/1.5 |
Technical Data
| Rated Voltage | AC 240V |
| Rated Wattage | Max. 20W |
| Rated Frequency | 50/60Hz |
| Power Factor | 0.95 |
| Entry Size (Hub) | PF / NPT 22C(3/4") |
Weight
| Mounting Type | Weight (kg) |
| Ceiling | 3.7 |
| Pendant | 4.7 |
| Bracket 40 | 5.7 |
| Bracket 90 | 5.7 |
Light Distribution Curve
LED Specification
| Power (W) | Luminous Flux (lm) | Luminar Efficacy (lm/W) | Color Rendering (CRI) |
Color Temp. (K) |
| 20 | 1,906 | 95.07 | >80 |
5,000~6,500 (Typ. 5,370) |
