내압방폭형 Camera Housing Box (CCTV용)
Ex d IIB+H₂ T6 (Zone 1/2)
Ambient Temp. : -20 ~ +40℃
Ordering Information
Material (Standard)
| Box Body & Cover | Cast Aluminium Alloy |
|
Lens Cover & Fixture |
Die-Cast Aluminium Alloy |
| Glass | Tempered glass |
Technical Data
| Rated Voltage | Max. 270 Vac / Max. 24 Vdc |
| Rated Frequency | 50/60Hz |
| Rated Current | Max. 0.5 A |

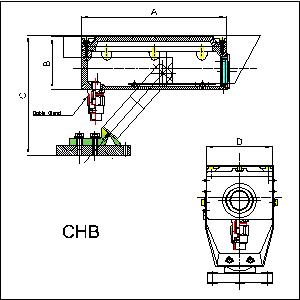

Box Detail Dimension & Drawing
|
Dimension(mm) |
|||||
|
Size |
A |
B | C | D |
Cable Gland (Hub) |
| 150*330*275 | 330 | 121 | 275 | 150 |
PF 1/2" (16C) |
