내압방폭형 Nipple
Ex d IIC (Zone 1/2)
Ambient Temp. : -20 ~ +100℃
Ordering Information

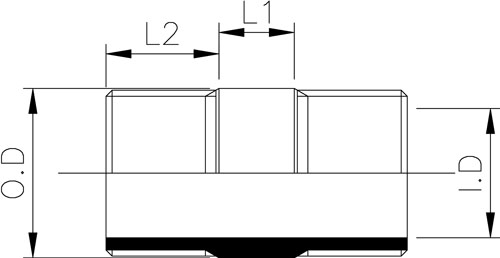

Drawing
Material (Standard)
| Body |
Steel |
Specification
| Model | Thread |
Weight (kg) |
Dimension |
|||
| D1 | D2 | L1 | L2 | |||
| NN-16 |
PF/NPT 1/2" (16C) M20x1.5P |
0.03 | 22 | 15.8 | 12 | 15 |
|
NN-22 |
PF/NPT 3/4" (22C) M25x1.5P |
0.07 | 27 | 20.6 | 12 | 18 |
|
NN-28 |
PF/NPT 1" (28C) M32x1.5P |
0.08 | 34 | 27.6 | 12 | 20 |
| NN-36 |
PF/NPT 1-1/4" (36C) M40x1.5P |
0.1 | 42.8 | 35.75 | 12 | 21 |
| NN-42 |
PF/NPT 1-1/2" (42C) |
0.15 | 48.5 | 41.6 | 13 | 22.5 |
| NN-54 | PF/NPT 2" (54C) | 0.25 | 60 | 53.3 | 16 | 24.5 |
